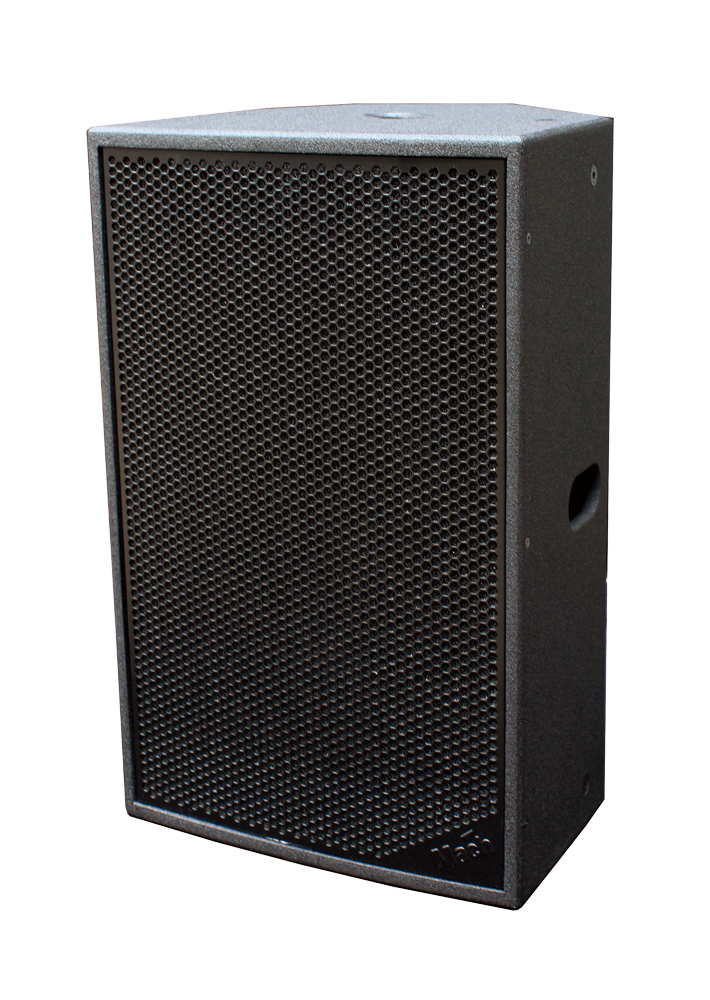

CX15

CX15 is a 2 way speaker with coaxial driver units and excellent sound quality.
A high gain before feedback and a narrow dispersion patent gives it a perfect and true vocal performance.The wedge shape design of CX15 can be place with different angles symmetrical shape allowing it to be used as a monitor on stage.
The distinct new CX15 is ideal for small to medium-sized applications or used as a monitor on small stages.





Specifications

Category
Power rating IEC268
Sensitivity 1w/1m
Dispersion angle avg
Drivers
Nominal Impedance
Frequency Response
Recommended amplifier


Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Grille
Input connector


Order Information

CX12 black



2 way coaxial speaker
450W
99 dB
H 60° V 60°
15" woofer, 1.4" tweeter
8Ω
50Hz ~ 19kHz
500W, 8Ω




680 x 434 x 406 mm
23.5 kg（51.8 lbs）
Black SafeCoat coating
2 mm steel with foam backing
2 x Speakon NL4




P/N 95003020
