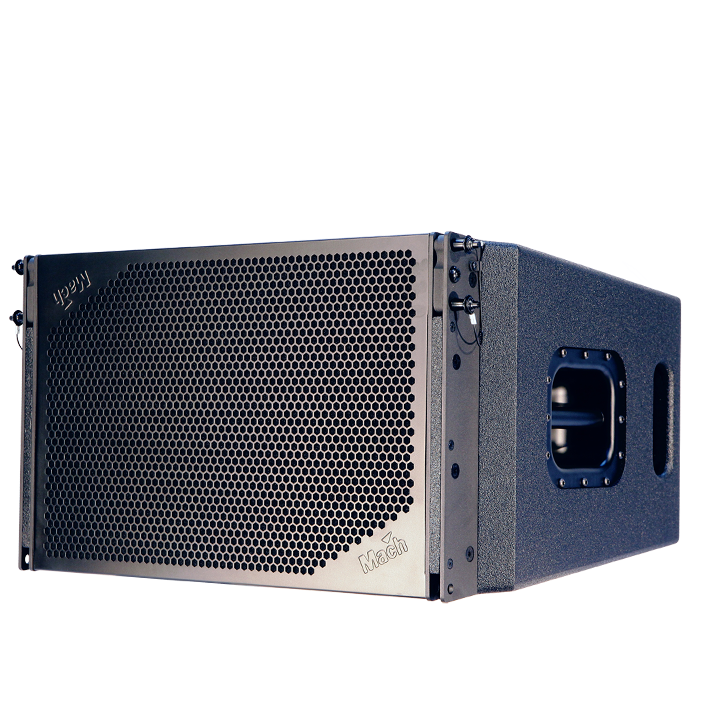

The Mach TLA-910 line array speaker is a compact but grand acoustic cabinet with Finnish birch plywood finishing. It comes with a 12' Woofer and two 1" special compression driver. Mach used unique high frequency line array diffraction Horn to ensure horizontal 90 ° vertical 10 ° of the effective and accurate coverage. TLA-910 combine with M218Tmk2 or Ballister Sub can get crisp, clear and strong sound pressure.




Power rating IEC268
Nominal Impedance
Max SPL continuous
Max SPL peak
Dispersion angle avg
Compression Drivers

Weight & Measurement

Dimensions (HxWxD)
Net weight
Input connector


2-way full range line array speaker
LF: 500 watt    HF: 140 watt
LF: 8Ω    HF: 16Ω
133 dB
136 dB
H 90° V 10°
2 x 1”
12” woofer


470 x 660 x 375mm
30.5 kg (67.2 lbs)
Black SafeCoat coating
2 mm steel with foam backing
2 x Speakon NL4

Order Information :
TLA910 black

P/N 95501010
