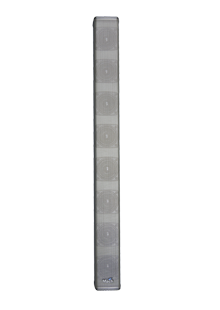

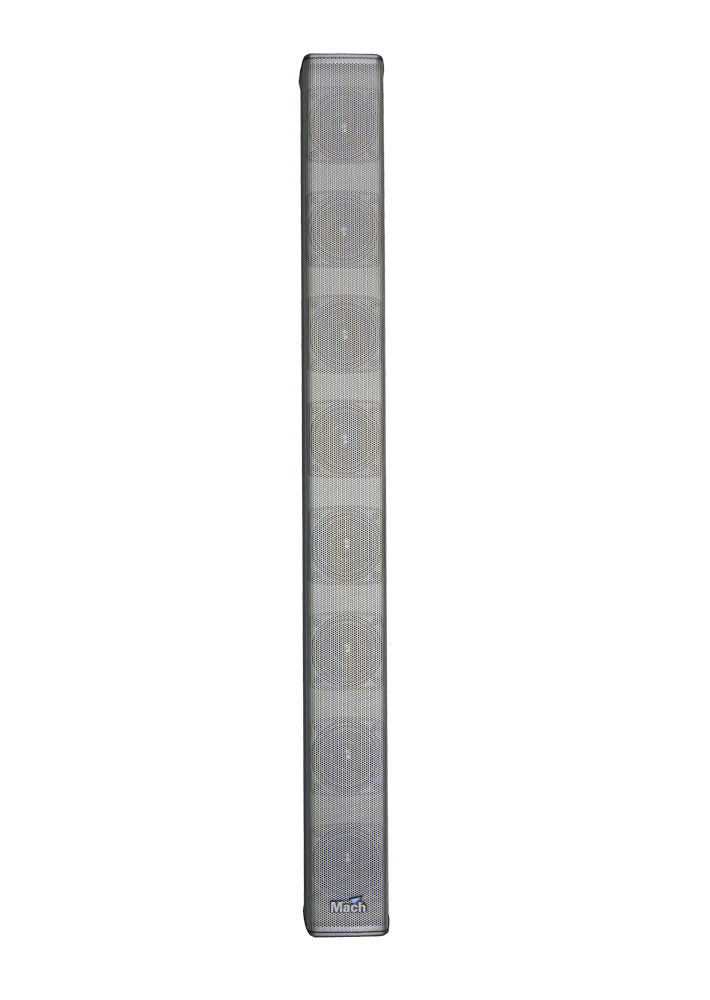

Shine 820

Shine 820 compact structure column speaker, through the auxiliary acoustic phase design, it phase to minimize interference between each units.





Specifications

Category
Power rating IEC268
Frequency response
Sensitivity 1w/1m
Max. SPL peak
Drivers
Dispersion angle avg
Nominal Impedance

Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Input connector



Column speaker unit
160W
100Hz ~ 23KHz
93 dB
123 dB
8 x 2" full range driver
H 90° V 150°
16Ω



638 x 64 x 86 mm
2.7 kg (6 lbs)
Black SafeCoat coating
Speakon Pin 1+, 1-

Order Information :
Shine 820 black

Order
P/N 95301030



Accessories

CB01
Cluster Bracket

P/N 98005050

SS02
Pole Mount Adapter

P/N 98005040

WM01
Wall Mounting Bracket

P/N 98005010

SS01
Adjustable height speaker pole
P/N 98005030

SS04
Speaker Pole 380mm

P/N 98005080

SS03
Deluxe speaker pole 380mm
P/N 98005070
