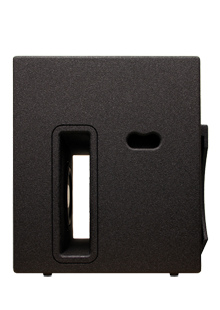

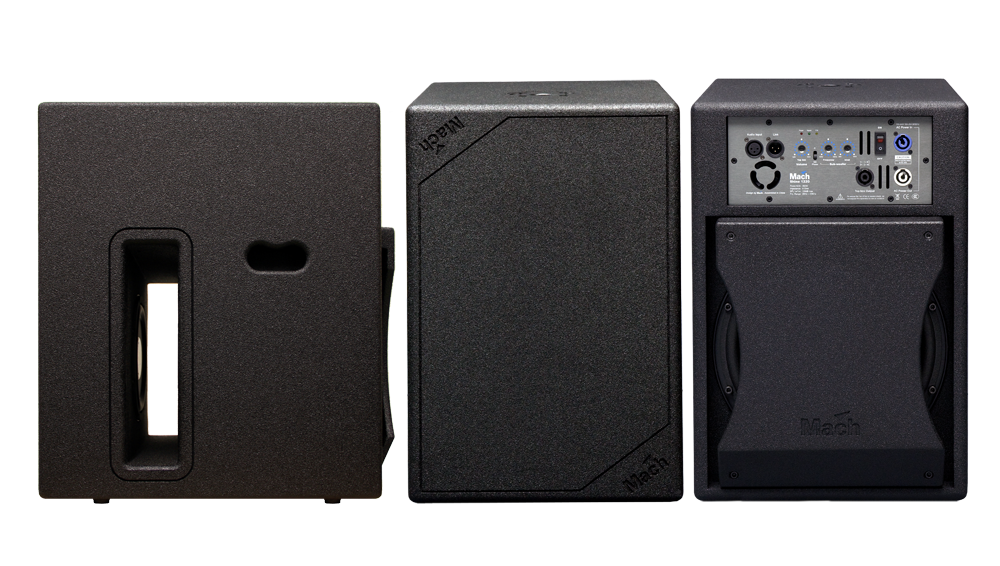

Shine 1220

Shine 1220 are uses its own special high output, long stroke woofer, bass cabinet is not only compact, but also can be hung installation. It comes with a separate amplifier system, and you can adjust the crossover frequency and phase, make it more simple and convenient to connect with full-frequency column speaker.





Specifications

Category
Power rating IEC268
Frequency response
Sensitivity 1w/1m
Max. SPL peak
Drivers
Nominal Impedance
Amplifier
THD
AC power rating

Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Input connector



Active woofer
450W
40Hz ~ 250Hz
99 dB
131 dB
12" woofer

400W x 2 Channel Class D module
< 0.05%
100-240V 50/60Hz 10 Amps



550 x 363 x 505 mm
30.1 kg(66.2 lbs)
Black SafeCoat coating
(Male/Female) 3pin XLR

Order Information :
Shine 1220 black

Order
P/N 95301050
