DD speaker

The Mach DD-4 Commercial background Music System was designed for high-end commercial venues market to play high-fidelity music. Four compact design DD speakers with special high full range output for music playback are included in the DD-4 system.





Specifications

Category
Power rating AES
Sensitivity 1w/1m
Dispersion angle avg
Drivers
Nominal Impedance
Frequency Response

Weight & Measurement

Dimensions (HxWxD)
Net weight
Input connector
Installation



2.25-way full range speaker
20W
89 dB
H 120° V 120°
13" woofer, 1" compression dirver

200Hz ~ 18kHz



82 x 63 x 85 mm
0.33 kg(0.73 lbs)

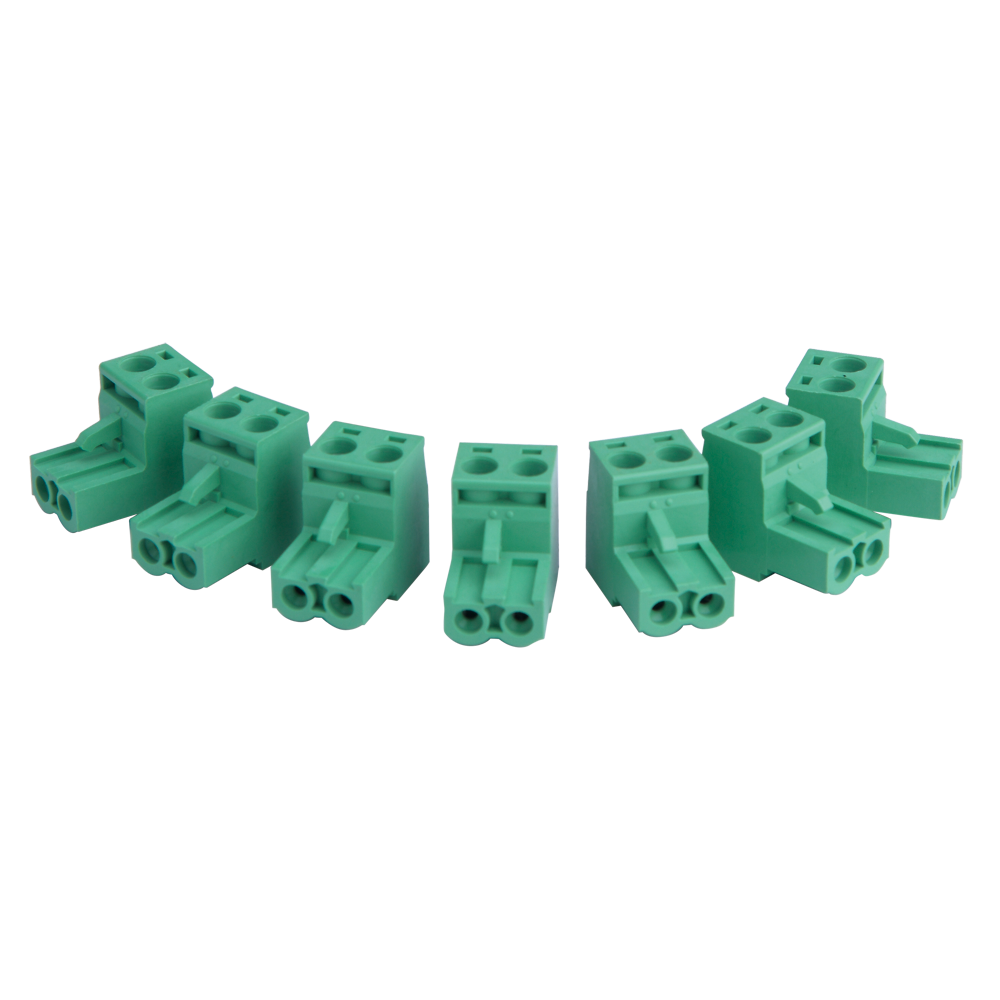

2 pole phoenix connector

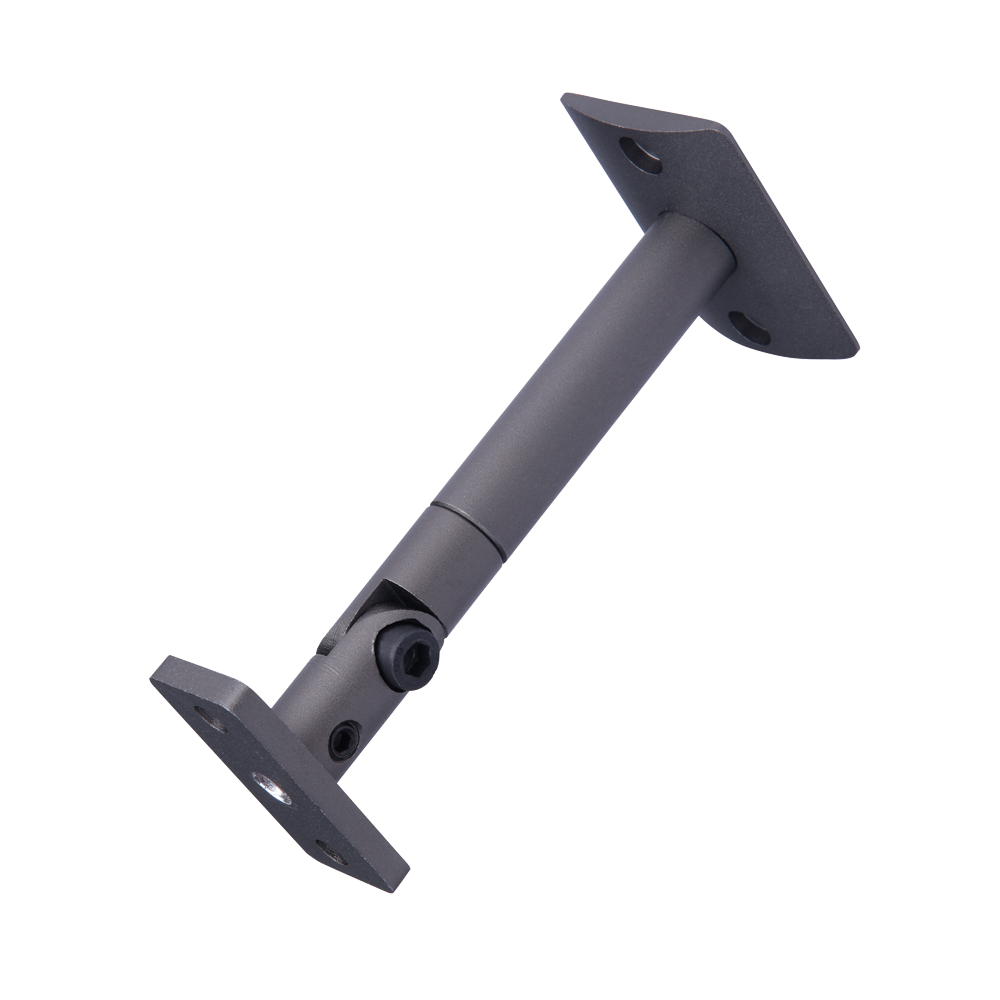

Mach WM-02 wall mount

Order Information :
DD speaker
DD-4 Full packing system

Order
P/N 94007041
P/N 94007040



Accessories
