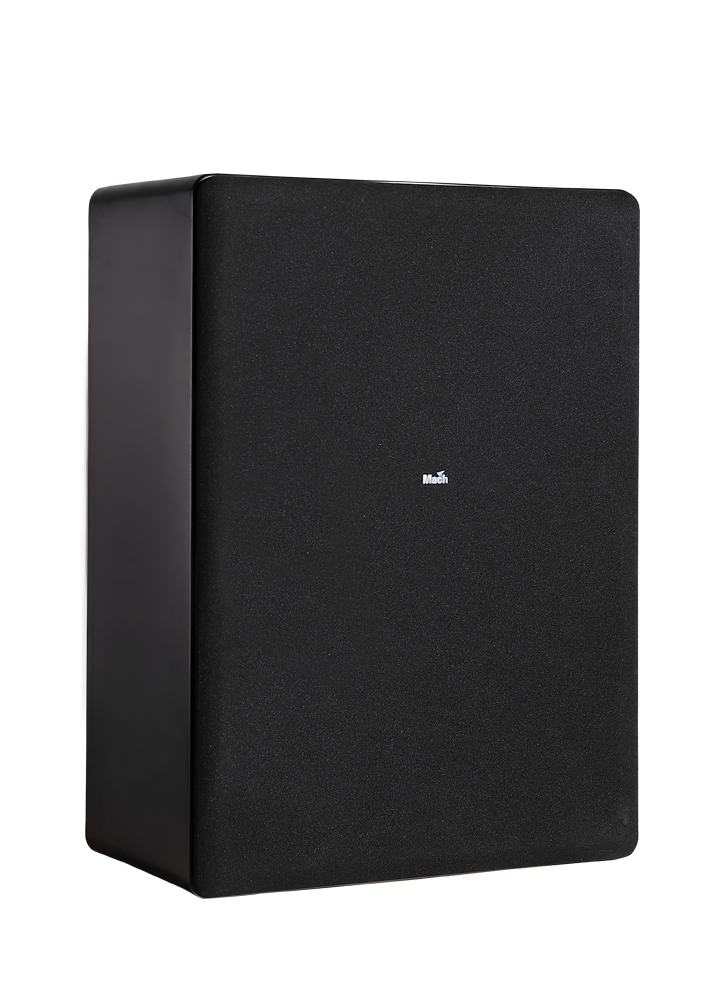

DC-12

Mach DC-10 and DC-12 are latest high-end full-range two-way speakers, DC-10 (10-inch two-way) and DC- 12 (12-inch two-way), passive crossover, high-grade matt painted, with thin and simple hanging mount, and two 8mm mounting screw holes on the top and bottom, which are easy to use and install. The DC-10/12 adopts a thin cabinet design, which minimizes the space occupied and continues the DC series style requirements to ensure the best sound quality. The high-end detachable cotton mesh to ensure pure sound and high-grade elegance. Whether you enjoy music in the hall, conference rooms, shopping malls, coffee bars, or even theater systems, you can use it flexibly. DC-10/DC-12 can be used with the existing DW-8P and DW-12 sub-woofers. And we will later launch DW-15 to hit the sound pressure requirements of larger venues.





Specifications

Category
Power rating AES
Max SPL
Sensitivity 1w/1m
High frequency driver
Low frequency driver
Dispersion angle avg
Nominal Impedance
Frequency Response


Weight & Measurement

Dimensions (HxWxD)
Net weight
Input connector


Order Information

DC-12 black



2-way full range speaker
400W
128dB
96dB
1" compression driver
12" rubber edge bass unit
H 100° V 60°

60Hz ~ 19kHz




600 x 400 x 240 mm
18 kg(39.7 lbs)
Speakers stud terminal




P/N 94005060
