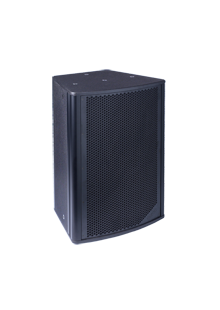

CM8

CM8 is a unique medium throw installation speaker with very high SPL in an ultra compact design with constant coverage. Featuring a rotatable horn and multiple flying points - four of which are fully adjustable, the CM8 is an extremely versatile installation speaker series. The distinct new CM8 is ideal for small to medium-sized applications in combination with a subwoofer or as a delay speaker.





Specifications

Category
Power rating IEC268
Sensitivity 1w/1m
Dispersion angle avg
Drivers
Nominal Impedance
Frequency Response
Recommended amplifier


Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Grille
Input connector


Order Information

CM8 black



2-way full range speaker
250W
92 dB
H 80° V 50°
8" woofer, 1" compression dirver

65Hz ~ 20kHz
500W, 4Ω




438 x 349 x 337 mm
16.3 kg(35.9 lbs)
Black SafeCoat coating
2 mm steel with foam backing
2 x Speakon NL4




P/N 95001010

  Accessories


      Download :

  • MACH Full Catalog 2016 chi
  •
  • MACH C-Serice brochure chi
  •
  • MACH CM-Serice user manuel eng/chi
  •
