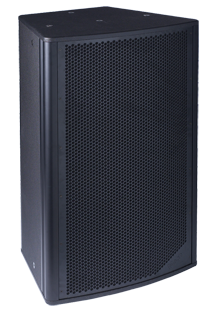

CM15

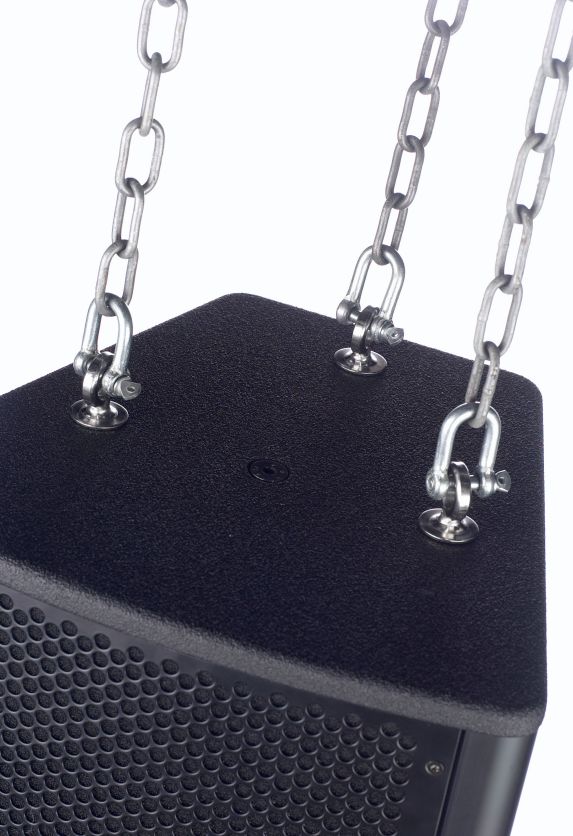

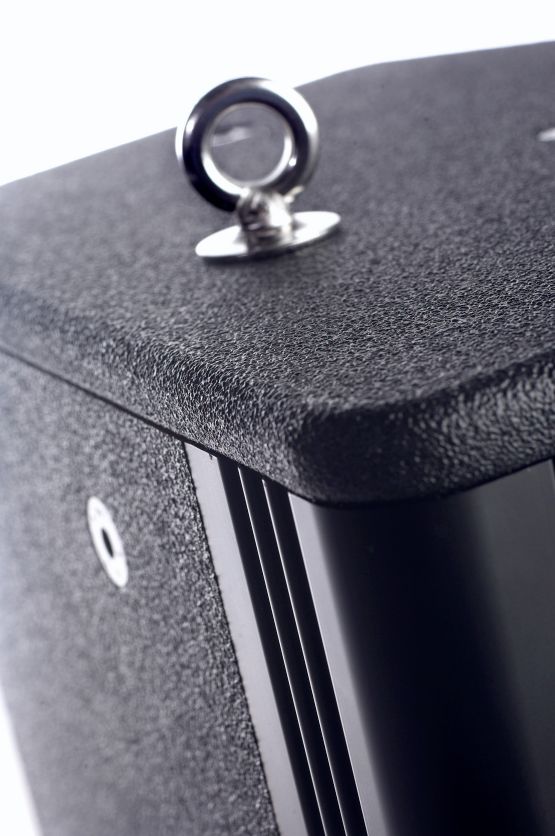

CM15 is a powerful medium throw speaker with very high SPL and controlled dispersion pattern. Featuring a rotatable horn and multiple flying points - four of which are fully adjustable, the CM15 is an extremely versatile installation speaker allowing for full flexibility in vertical and horizontal positioning. The distinct new CM15 is ideal for medium to large-sized venues and can run either as a top box or as a full range box.





Specifications

Category
Power rating IEC268
Sensitivity 1w/1m
Dispersion angle avg
Drivers
Nominal Impedance
Frequency Response
Recommended amplifier


Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Grille
Input connector


Order Information

CM15 black



2-way full range speaker
450W
99 dB
H 90° V 60°
15" woofer, 1.4" compression dirver

50Hz ~ 19kHz
1000W, 4Ω




786 x 498 x 405 mm
39.5 kg(87.1 lbs)
Black SafeCoat coating
2 mm steel with foam backing
2 x Speakon NL4




P/N 95001060

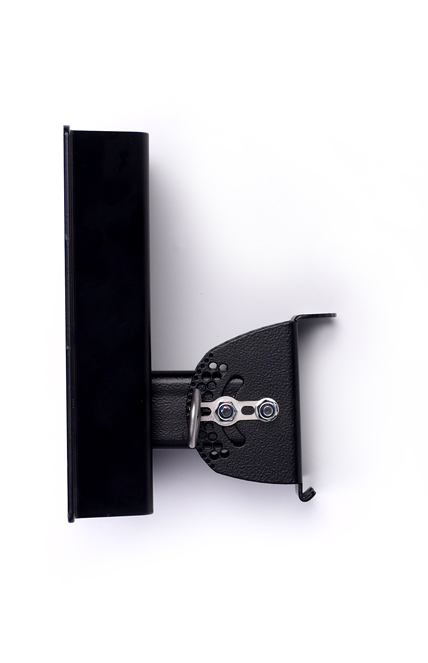

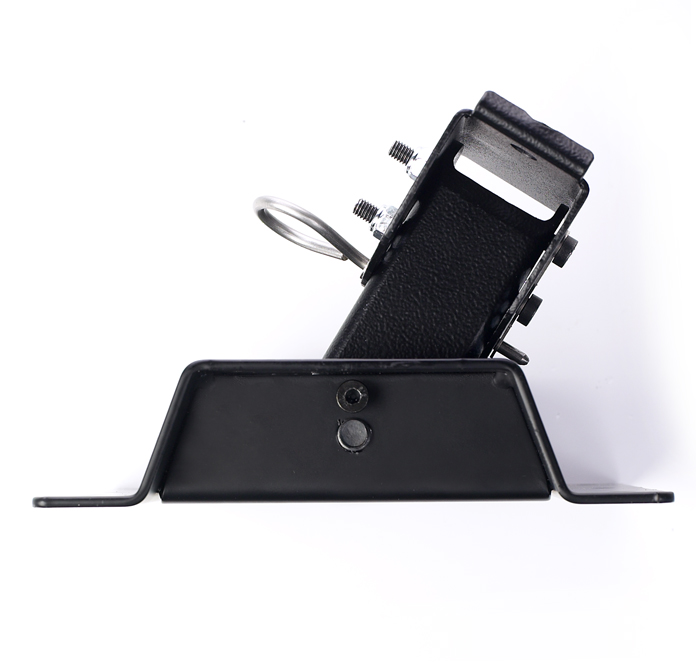

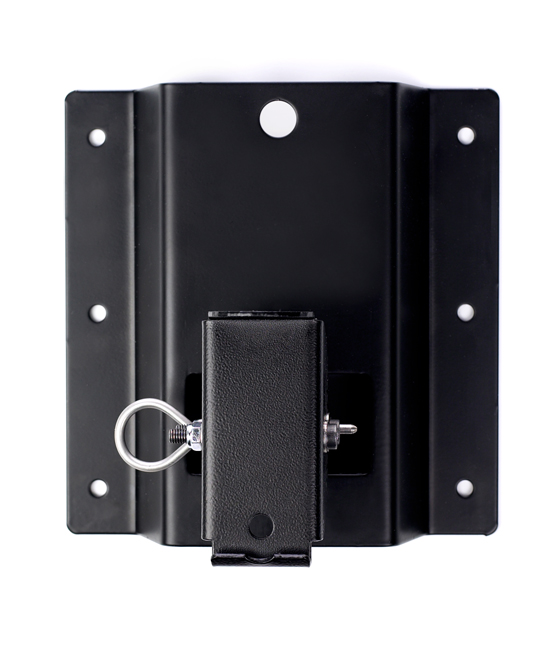

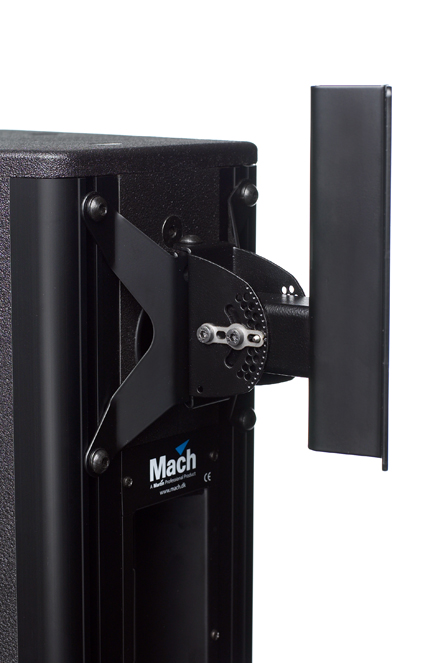

  Accessories


      Download :

  • MACH Full Catalog 2016 chi
  •
  • MACH C-Serice brochure chi
  •
  • MACH CM-Serice user manuel eng/chi
  •
