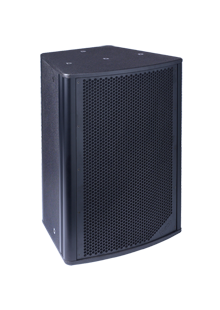

CM12

CM12 is a brilliant medium throw speaker in a compact design with high output and a controlled dispersion pattern. Featuring a rotatable horn and multiple flying points - four of which are fully adjustable, the CM12 is an extremely versatile installation speaker allowing for full flexibility in vertical and horizontal positioning. The distinct new CM12 is ideal for medium-sized venues where high output and low ceiling fixing points are required.





Specifications

Category
Power rating IEC268
Sensitivity 1w/1m
Dispersion angle avg
Drivers
Nominal Impedance
Frequency Response
Recommended amplifier


Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Grille
Input connector


Order Information

CM12 black



2-way full range speaker
400W
97 dB
H 80° V 50°
12" woofer, 1.4" compression dirver

55Hz ~ 20kHz
800W, 4Ω




545 x 430 x 343 mm
24.5 kg(54 lbs)
Black SafeCoat coating
2 mm steel with foam backing
2 x Speakon NL4




P/N 95001040

  Accessories


      Download :

  • MACH Full Catalog 2016 chi
  •
  • MACH C-Serice brochure chi
  •
  • MACH CM-Serice user manuel eng/chi
  •
